GSPEED G-Wedge Skid Plate: The Ultimate High-Clearance Solution
Eliminate the "belly-drag" that stalls your progress on the rocks. The GSPEED G-Wedge Skid Plate is the definitive upgrade for drivers demanding maximum ground clearance and a smooth, snag-free underside. Specifically designed to complement the aggressive geometry of the GS-FS-V2 chassis, this skid plate is a must-have for any competitive Class 2 or high-performance "cheater" build.
The G-Wedge features a unique, tapered "wedge" design that minimizes the footprint of your center section without sacrificing structural integrity. By reducing the overall length and optimizing the ramp angles, the G-Wedge allows your rig to slide over obstacles that catch and high-center traditional flat plates. When every millimeter counts, the G-Wedge delivers the winning edge.
Technical Features & Performance Benefits
-
Ultra-High Clearance: Engineered with a compact footprint to provide maximum breakover room.
-
Tapered Wedge Design: Smooth, angled transitions help the chassis glide over jagged rocks and ledges.
-
V2 Chassis Optimized: Designed for a seamless fit with the GS-FS-V2 chassis 10° skid angle.
-
Competition Legal: Meets SORRCA requirements while providing "cheater rig" levels of performance.
-
Durable Construction: Built to withstand heavy impacts while maintaining a low-friction surface for sliding.
CNC machined out of SLICK delrin plastic weighing 39 grams
77mm wide and only 41mm short, compared to the regular GSPEED skid at 48mm long
12mm tall in front and 9mm tall in the rear
chassis mounting holes are 31mm on center, compared to the regular GSPEED skid at 38mm

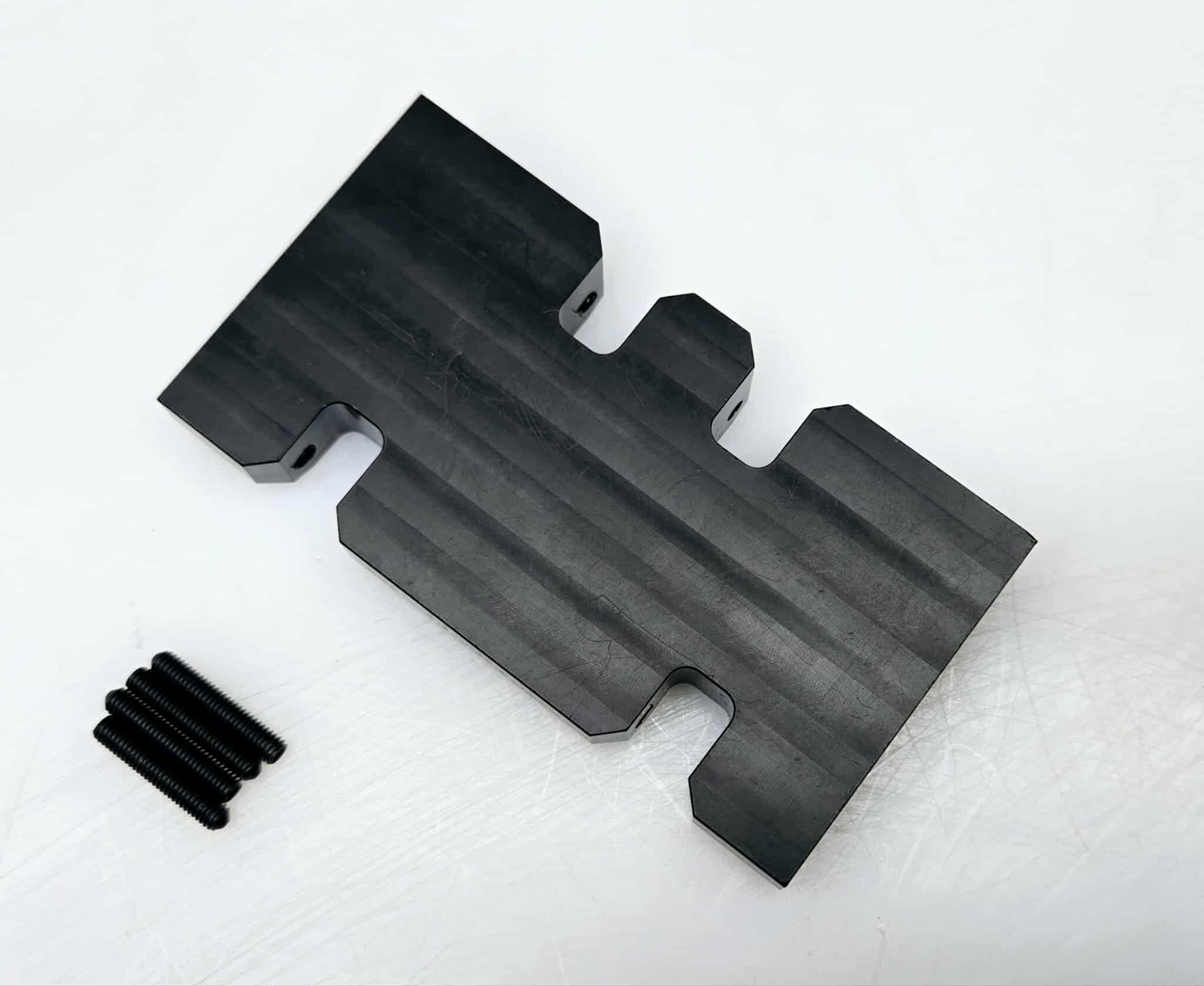

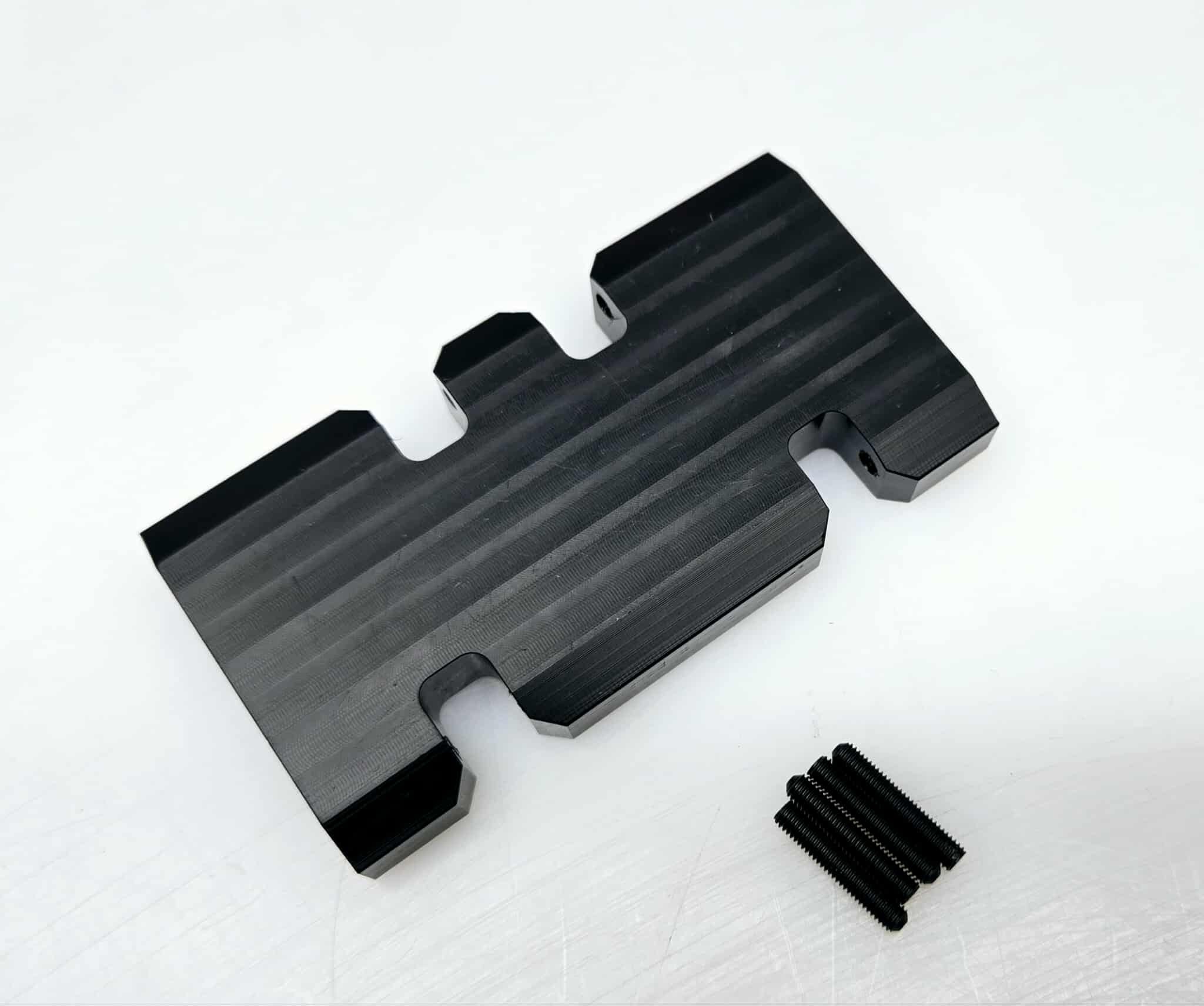

Includes 4- 3mm x 16mm set screws
